219*26mm Termite Proof Weatherproof Exterior WPC Wall Panel

Product Categories
Haining Vanshine New Materials Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

219*26mm Termite Proof Weatherproof Exterior WPC Wall Panel

Model Number : FS-219-26

Termite Resistance : 100% Termite-Proof, Insect-Proof, Anti-Bacterial

MOQ : 20packages

Delivery Time : 5-15workdays

Water Absorption Rate : 24-Hour Full Immersion < 0.4%

Container Loadability : ≈ 4,200+ Square Meters per container

Supply Ability : 1000000pcs/week

Environmental Grade : E0 Standard (Zero Toxic Emissions)

Sound Insulation : Good sound absorption properties

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Recommended Joist Span : Max joist spacing ≤ 400mm center-to-center

Installation Method : Tongue and Groove / Clip System

Price : $1.1-1.6 or negotiation

Material Formulation : 60% Wood Fiber + 30% HDPE + 10% Additive Package

Certification : CE，SGS

Weathering Performance : All-Weather UV Resistant, Extreme Temp (-40°C- 60°C)

Place of Origin : China

Fire Safety Rating : B1 Fire Retardant (GB 8624-2012 / EN 13501-1 Class B-s1, d0)

Packaging Details : pallet/carton

Surface Hardness : ≥3H

Brand Name : Vanshine

Profile Dimensions : 219mm (Effective Width) * 26mm (Profile Height)

Contact Now

219*26mm Termite Proof Weatherproof Exterior WPC Wall Panel
Product Overview

The 219*26mm Termite Proof Weatherproof Exterior WPC Wall Panel is a high-performance extruded profile engineered specifically for modern architectural facades and exterior wall cladding projects. Manufactured using 60% refined wood fiber, 30% modified high-density polyethylene (HDPE), and 10% eco-friendly functional additives—including UV stabilizers and inorganic termite deterrents—this panel is fused and molded under high-temperature twin-screw extrusion.

Featuring an ultra-wide 219mm effective coverage and reinforced 26mm heavy-duty cross-section, this wall panel ensures outstanding wind-load resistance and structural impact strength while minimizing joint seams and installation labor. By encapsulating wood fibers within modified HDPE resin, it completely overcomes traditional timber vulnerabilities such as termite infestation, moisture absorption, mold growth, and sun cracking.

Technical Specifications
Parameter Specification / Performance Standard Testing Standard / Engineering Reference
Product Name 219*26mm Termite Proof Weatherproof Exterior WPC Wall Panel Industrial-Grade Extruded Exterior Siding Profile
Profile Dimensions 219mm (Effective Width) * 26mm (Profile Height) Extrusion Tolerance within ± 0.4mm
Termite Resistance 100% Termite-Proof, Insect-Proof, Anti-Bacterial ASTM D3345 Rating 10 (Zero Infestation)
Weathering Performance All-Weather UV Resistant, Extreme Temp (-40°C- 60°C) ISO 4892-2 Accelerated Weathering ≥ 2000h
Fire Safety Rating B1 Fire Retardant (GB 8624-2012 / EN 13501-1 Class B-s1, d0) Self-extinguishing, low smoke, no toxic droplets
Water Absorption Rate 24-Hour Full Immersion < 0.4% Exceeds standard exterior timber waterproofing standards
Material Formulation 60% Wood Fiber + 30% HDPE + 10% Additive Package High-density homogeneous polymer composite
Recommended Joist Span Max joist spacing ≤ 400mm center-to-center Meets high-rise exterior wind load standards
Environmental Grade E0 Standard (Zero Toxic Emissions) 100% Recyclable Eco-Friendly Material
Container Loadability 40'HQ Optimized Pallet Packaging ≈ 4,200+ Square Meters per container
Core Advantages
  • 100% Superior Termite-Proof Performance: Fully encapsulates wood fibers within modified synthetic polymers, cutting off the food source and habitat for termites and wood-boring insects without needing toxic chemical treatments.
  • All-Weather Resilience & Dimensional Stability: Formulated with high-grade UV stabilizers and antioxidants, maintains minimal color fading and high tensile strength under intense sunlight, heavy rain, snow, and coastal salt fog.
  • 219*26mm Wide-Profile Heavy-Duty Design: Creates bold, sweeping modern architectural lines while reducing wall joint gaps. The 26mm thick wall structure delivers superior impact strength and thermal insulation buffering.
  • Concealed Clip Modular Rapid Installation: Designed for use with stainless steel or aluminum clip systems, hides all screw heads during installation for a clean, seamless dry-hang facade.
Primary Applications
  • Commercial Building Facades: Modern timber-look wall cladding for shopping centers, hotels, and corporate office headquarters
  • Residential & Resort Siding: Protective wall cladding for luxury villas, resort chalets, eco-lodges, and park facility exteriors
  • Architectural Renovation & Sunshading: Exterior wall retrofits for older commercial buildings, solar shading screens, and decorative exterior columns
Product Images

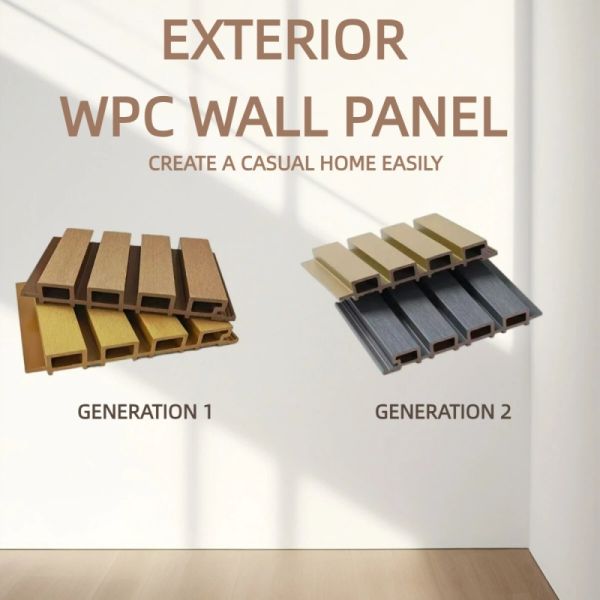

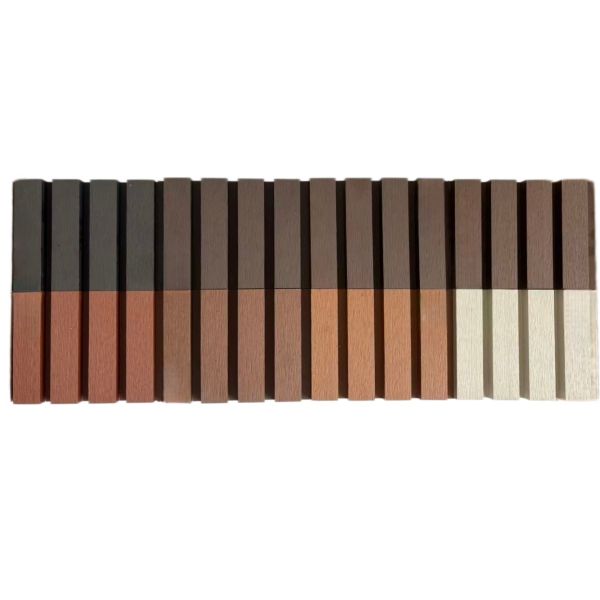

219*26mm Termite Proof Weatherproof Exterior WPC Wall Panel 219*26mm Termite Proof Weatherproof Exterior WPC Wall Panel
Technical Q&A
Q1: Why is the 219*26mm wide specification a major advantage for exterior wall engineering?
The 219mm width increases installation speed on-site and reduces overlap seams by over 30%, minimizing the risk of rainwater penetrating the building envelope. Additionally, the 26mm profile thickness provides excellent flexural rigidity and wind-load resistance, ensuring the facade remains flush and flat even in high-wind environments.
Q2: How does this wall panel achieve 100% termite resistance?
Traditional preservative-treated timber relies on surface chemical soaking, which leaches over time. In contrast, this panel fuses wood fiber and high-density polyethylene (HDPE) under high pressure above 200°C. The HDPE resin completely coats the wood fibers, destroying the cellulose digesting environment that termites require. Integrated pest-deterrent additives ensure the material is termite-proof throughout its core.
Q3: How does this wall panel perform under extreme weather conditions?
The panel undergoes rigorous accelerated UV aging (QUV) and thermal cycle testing. Between -40°C freezing cold and 60°C scorching heat, its flexural strength and impact resistance show minimal decay. High-grade UV pigments and light stabilizers ensure the exterior facade retains uniform color over time without chalking or peeling.
Q4: What key considerations should overseas B2B buyers keep in mind regarding packaging and installation?
For sea freight, the uniform profile allows compact bundling on export pallets, maximizing volume utilization in 40'HQ containers. Regarding installation, because composite polymers have natural thermal expansion properties, installer crews should leave a 3mm to 5mm expansion gap at butt-joints and secure joists at 400mm intervals to guarantee long-term stability and flatness.
